Part Number: MAD8515MWM / Vendor ID #: 90

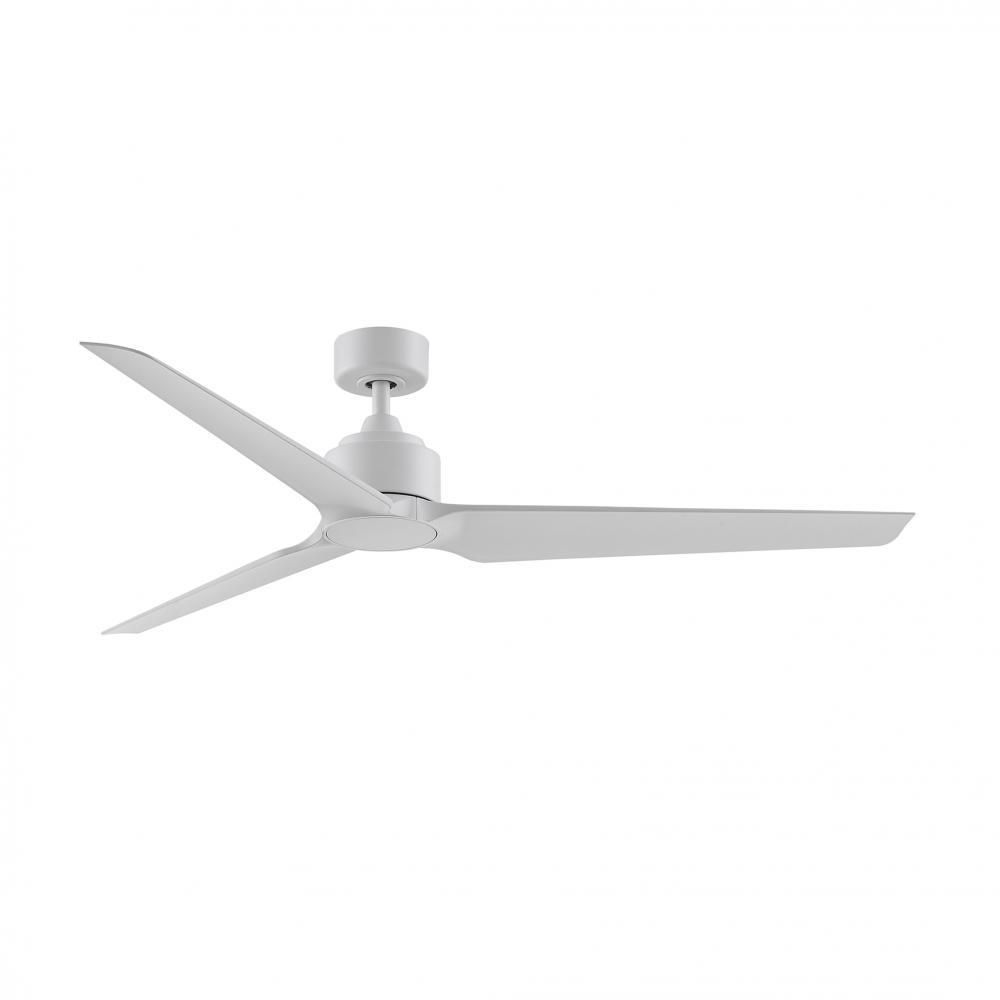

TriAire Custom Marine Motor - MWM

by Fanimation

$571.98

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer availability unknown.
Item may be on Backorder until 04/21/2025 or later.

Dimensions

Height: 15.92"

Width: 64.00"

Length: 64.00"

Info & Guides

Click Here to View Manual Sheet Details

Finish: Matte White

Canopy: 5.75 Dia, 2.57 H

Compatible Light Kits: LK8514MWM

Motor Finish Method Type: Painted

Product Overview

TriAire Custom by Fanimation fits any style in any location. This TriAire Custom ceiling fan motor features Marine grade finishes in Black or Matte White, that can be used in any indoor or outdoor location in the home. TriAire Custom Marine has a 31 speed DC motor and TR305 handheld remote included. Can be used in any dry, damp or wet location. Downrod, sloped or flush mount capability. Can be controlled using the Fanimation Bluetooth fanSync app. Reversible airflow for multi-season use. Eight different blade sweeps in multiple finishes and an LED CCT Select Light Kit are available (sold separately).

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White

Option:

Energy Star

Wet Rated

Voltage:

10-99

Number of Blades:

3 Blades

Wattage:

Refinement Options

Category:

Fan-Multi

Finish:

Matte White

Option:

Energy Star

Wet Rated

Family:

TriAire Custom

Voltage:

120V

Air Flow CFM:

10387

Air Flow Efficiency:

342

Blade Pitch:

Canopy:

5.75 Dia, 2.57 H

Harmonized Codes:

8414.51.3000

Length:

64, 72, 84

Max Width:

Motor Size:

153 x 25

Motor Type:

Ship Carton Height:

8.35

Ship Carton Length:

15.94

Ship Carton Width:

8.86

Ship Weight:

15.08

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

13.67

Airflow Efficiency Low:

723

Airflow Efficiency Medium:

757

Avg Airflow Efficiency:

378

Avg CFM Energy:

7827

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Canopy Diameter:

5.75

Canopy Height:

2.57

Cap Included:

Yes

Case Quantity:

CEC Uploaded:

Yes

Ceiling To Blade Edge:

16.42

Ceiling to Bottom No LK:

15.92

Ceiling to Bottom with LK:

18.12

CFM Low:

1734

CFM Medium:

6891

Compatible Accessories:

CCK8002MWW, DR1-CPMW, DR1SS-12MWW, DR1SS-18MWW, DR1SS-24MWW, DR1SS-36MWW, DR1SS-48MWW, DR1SS-60MWW, DR1SS-72MWW, SCB1-52

Compatible Blades:

BPW8515-64BLW, BPW8515-64DWAW, BPW8515-64MWW, BPW8515-64SLW, BPW8515-64WEW, BPW8515-72BLW, BPW8515-72DWAW, BPW8515-72MWW, BPW8515-72SLW, BPW8515-72WEW, BPW8515-84BLW, BPW8515-84DWAW, BPW8515-84MWW, BPW8515-84SLW, BPW8515-84WEW

Compatible Light Kits:

LK8514MWM

Compatible Wall Controls:

TW306

Country of Origin:

China

Current Draw High:

0.43

Current Draw Low:

0.05

Current Draw Medium:

0.14

DOE Classification:

LSSD

DOEFTC Uploaded:

Yes

Downrod Length:

Exempt from DOE Procedure:

Fan Energy Star:

Yes

Housing Diameter:

7.09

Included Control:

TR305

Included Control Type:

Handheld

Leadwire:

Max Ceiling Slope:

Max Watt:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

100

RPM Low (II):

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60HZ

Watts Low:

Watts Medium:

Wet Rated:

Yes

10387 CFM on High

Compatible with smart home devices using the Wi-Fi fanSync app

Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features

Marine Grade Matte White Finish

Set of (3) Marine Grade blades with Black or Matte White finish options available and 18 watt LED CCT Select light kit available (sold separately)

Tr305 Handheld Remote With 23a Battery Included
